Introduction Of Wheel Blasting Machine
The wheel blasting machine utilizes a centrifugal shot blasting wheel to move abrasive media onto the surface. Shot peening, etching, & surface cleaning are only a few explanations for utilizing wheel blasting. Wheel blasting involves moving an abrasive substance, usually metallic, via a hub in a spinning bladed wheel, causing abrasive media off tips of blades & onto job piece standing cleaned, peened, & otherwise completed. Instead of pressurized air, technique forces abrasive media utilizing centrifugal force. Size, density, form, & acceleration of the abrasive all influence how exterior finish appears & functions. There are several varieties of wheel blasting equipment available, each with a varied size, weight, & exhibition volume to meet different requirements.
Wheel blasting machines are high-power, high-efficiency blasting operations that utilize recyclable abrasives. Wheel blasting machine push plastic abrasive in a cryogenic chamber; this approach of wheel blasting is generally employed to deflate plastic & rubber components. The size of a wheel blast machine, as well as number & power of wheels, are determined by items to be blasted & desired outcome & efficiency.
The main distinction between surface preparation techniques is procedure employed during blasting. Wheel shot blasting machine is an approach of dragging abrasive media onto the exterior of the entity existing prepared utilizing a throwing wheel. Abrasive air blasting method utilizes compressed air to generate a streamlet of abrasive certain is aimed at the object's surface.
Wheel Blasting Machine Working
Wheel blasting & shot peening machines turn electric motor energy into kinetic abrasive energy by turning a turbine wheel. Wheel blasting machine employ enormous volumes of revved abrasive to de-rust, descale, deburr, de-sand, or clean massive sections before to coating.
Often, the manner of transferring the elements to the wheel blasting machine determines the kind of unit to be placed. Comfortable table machines authorize for the manual loading of minor elements. To place elements on integrated automated roller machines, pulleys & different lifting equipment may be required. On the larger end of the scale, there are entire crane roller conveyors & track systems.
The wheel blasting machine procedure is based on principle of throwing abrasive media at heightened velocity against exterior to be cleaned. Throwing motion is achieved by centrifugal force, accompanied by a wheel with paddle kind blades connected radially rotating at a constant shaft speed. Abrasive media is supplied into this wheel in such a way certain it travels down radial length of blades before standing flung out in a heightened velocity stream at the surface to be cleaned. The energy put into abrasive is enough to cause it to bounce off work surface. The rebound (kinetic energy) is employed to recycle abrasive for reuse.
The equipment is configured so certain blast wheel throws abrasive at an angled angle to the employment surface. This implies that after impacting the result externals, abrasive bounces at a comparable angle into the reclaim duty, wherever it is controlled back into hopper for reuse. Dust collector's air flow penetrates the machine via a scrub screen at front of cabinet, runs across outcome exterior, up reclaim duct, past the separators, & into dust collector to aid in the reclaim cycle. Then it departs via fan & into the atmosphere.
Types Of Wheel Shot Blasting Machine
Wheel blasting equipment works effectively accompanied by larger things since blast area is spread out more than accompanied by air blasting. In these cases, wheel blasting machine is a good choice because of its velocity & efficiency.
Tumble Shot Blasting Machine
Tumble shot blasting machines employ constantly manufactured rubber belts to tumble components, authorizing tiny & medium elements to travel throughout blasting room. Shot Blaster tumblast shot blasting machine keeps load capabilities of until 3,000 pounds (24 cubic feet). They operate simply, demanding machinist to load, close the door, set the time, & begin wheel machine. We provide more undersized units certain could handle an assortment of abrasive media & fit easily into exhibition cells.
Table Type Shot Blasting Machine
A table shot blasting machine rotates job piece utilizing an automatic turntable, ensuring certain whole piece is evenly exposed to wheel blast machine. Our table type shot blasting machine can handle things considering until 10,000 pounds, measuring eight feet broad & seven feet tall, while they are designed for 66 inches. Oscillating wheel choices improve blast scope, while swing doors make loading & unloading easier.
Wire Mesh Belt Shot Blasting Machine
Our wire mesh belt shot blasting machine automates batch processing, lowering labor expenses. Manganese wire mesh belt widths (available from 12-36′′) could be loaded manually & accompanied by an automatic loading explanation on one end, wherever two to twelve direct-drive blast wheels polish job pieces while the abrasive media falls via the belt for reuse.

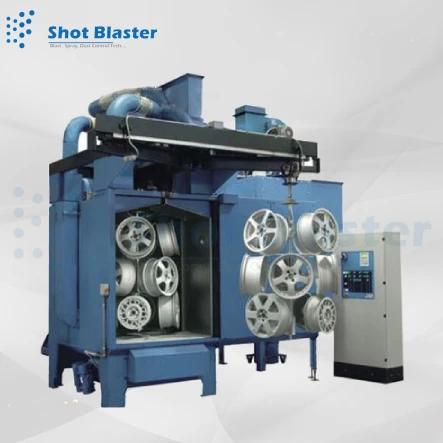

Spinner Hangers Shot Blasting Machine
Our two-chamber spinner hangers blasting machine offers automatic finishing choices for fragile & irregularly shaped items. The operator unloads & reloads one chamber while additional processes components, allowing the line to move faster. A spindle rotates the pieces uniformly once they have been put onto hooks. Highest blast envelope is 36′′ by 60′′, the optimal envelope is 36′′ by 48′′, & highest load is 2,000 pounds.
Pipe Shot Blasting Machine Systems
When working accompanied by long, spheroidal materials, like metal pipes, rods, & axles, pipe cleaning shot blasting machine spins job piece while it goes via blast room, allowing for a more automatic range of the whole item. Our machines can handle materials with outside diameters of until 42′′, assembling it simple to work accompanied by bigger portions.
Roller Conveyor Shot Blasting Machine
Roller conveyor shot blasting machine system is effective accompanied by plates, structural components, & additional angular parts. This system moves pieces via blasting room, constructing it ideal for more extended pieces. Employing paired wheel blasters at individual places, roller conveyor shot blasting machine cleans all surfaces evenly for the best outcomes.
Monorail Wheel Shot Blasting Machine
Monorail systems contain numerous triple seals & automated abrasive blow-offs for abrasive containment; numerous wheel blasters to optimize speed, coverage, & operating efficiency; & a solid manganese shot blasting cabinet accompanied by cast alloy liners for a long reasonable life. An automated abrasive replenishment mechanism makes it simple to maintain in operation, and careful design reduces maintenance.
Shot Blasting Wheel Features
- Compressed air-free blasting operation, in which the blasting medium is propelled straight without intermediary carriers utilizing the centrifugal forces of the centrifugal wheel.
- High & even coverage at long operational distances.
- A constant reserve of blasting material to the blast wheel.
- Metallic & organic abrasives are usually the only options.
Wheel Blasting Machine Price in India
Shot Blaster is a popular manufacturer and supplier of wheel shot blasting machine in India. The pricing of our wheel blasting equipment in India varies depending on the model. We also supply abrasive blasting machines, sand blasting machine, shot blasting machines, shot blasting spare parts, thermal spray guns, metalizing wire, abrasive media, and more.
