Pressure Grit Blasting Cabinet

Specification of Pressure Grit Blasting Cabinet

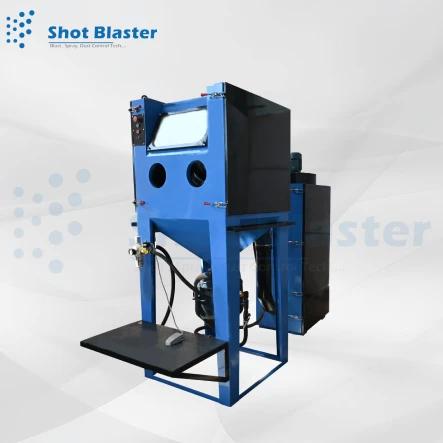

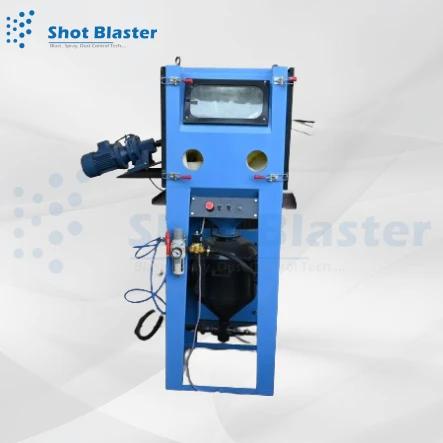

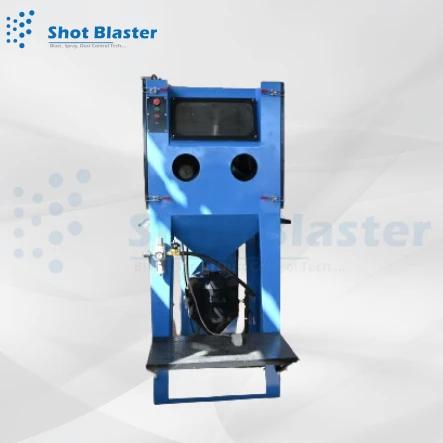

In the Pressure Grit Blasting Cabinets, There is a pressure pot at the bottom of the Grit Blasting hopper. In the Pressure Grit Blasting Cabinet, pot pressure is created towards the abrasive & compressed air through a mixer tube. Grit Blasting Cabinet requires 65-110 CFM & 6-7 kgf/cm2 compressed air.There are two doors of a cabinet in which the workpiece is fed for abrasive grit blasting. And abrasive media is fed into the grit blasting hopper having gravity feed. Hopper has two levels of sieving in which the upper level is a perforated sheet having 8mm holes. And the second level of sieving is wire mesh having 3mm holes for filtration of abrasive media. It is used for effective grit blasting cabinet for removing a hard layer of unwanted contaminants. These Pressure Blasting Cabinets are categories in different types of grit blasting cabinets as to which abrasive media is used. In the pressure blasting cabinet Checkered stand is used for pressure blasting. The checkered platform provides an operator to stand on the cabinet. Due to the pressure pot at the bottom stand of the grit blasting cabinet that is height increases.

Pressure Grit blasting cabinet Working

Pressure Grit blasting cabinet Working Principle Pressure Grit blasting cabinet works on the direct pressure principle of grit blasting. When high abrasive media velocity produces by pressure grit blaster which results in completing the work at a faster rate. A pressure pot bolted below a tank of grit blasting cabinet for automatic abrasive media refilling arrangements. For the high efficiency of dust collection, a tubular fabric bag dust collector, with a generous filter area is associated with the grit blaster cabinet as a standard feature. A manual shaker is provided for shaking. A high-Pressure grit blaster cabinet is recommended for fast cleaning, removal of corrosion, and heavy rust using coarse abrasives media. All types of coarse and medium-sized abrasives media like aluminum oxide, steel shot, steel grit, copper slag, etc can be used by grit blast cabinet nozzle depending on the application.

Obtaining a 5 to 10 times higher output (compared to suction feed) direct pressure grit blasting cabinets operate with one grit blasting hose connected to the grit blasting nozzle. As a small grit blaster pot pressurizes the abrasive media equal to the transportation air pressure, the abrasive simply ‘fall’ (by means of gravity) into this air stream and is propelled towards the Blasting Surface object.

So, In this way, the compressed air is only used for transporting the abrasive media (without having to suck it up as well). Good visibility and effective dust containment are achieved by the powerful dust collector extracting system which depending on the abrasive media type and application, dust extraction can be optimized by applying automatically cleaned filter cartridges or a cyclone separator dust collector. Pressure Blast Cabinet Available in three standard models:

• APB-9182
• APB-12090
• APB-150120

Options available on request:

• Higher output blast gun in place of a standard gun.
• ON / OFF fitted with optional accessories.
• Reverse jet cartridge filter dust collectors.
• Foot-operated treadle switches for blasting.
• Motorized bag-shaking arrangement.

Benefits Of Pressure Blaster

• Easy setup and structure of the pressure blast cabinet and abrasive amount.
• Easy start/stop blasting with large foot pedal
• High-grade working view through a full-width window and effective dust extraction.
• Sufficient access possibilities with large side-door
• Easy disposal of collected dust in the hopper.

Automatic filter cleaning

• Better blasting value.
• approximately 50 – to 100% higher work speed (compared to suction feed).
• Most abrasives can be used (also the ‘heavy ones’ like stainless steel shot or chilled iron grit.
• Optimal surface making to further painting- and gluing processing.
• Adds a nice cosmetic finish.

Pressure Grit Blasting Cabinet for sale

SandBlast is the Beat Pressure Grit Blast Cabinet manufacturer in Jodhpur, Rajasthan, India for sale. We are leading Manufacturers, Supplier & Exporter of grit blasting cabinet, Sand Blasting Machine, Portable Sand Blaster Machine, Shot Blasting Machine, pressure Shot blasting cabinet, Sand Blasting Cabinet, Bench Top Sand Blasting Cabinet, Suction Blasting Cabinet, Sand Blasting Nozzle, Sand Blasting Room, Metalizing Gun, Thermal Spray Gun Equipments, zinc spray coating, Arc Spray gun, abrasive media in Jodhpur, Rajasthan, India at low price with the best quality according to a customer requirement.
