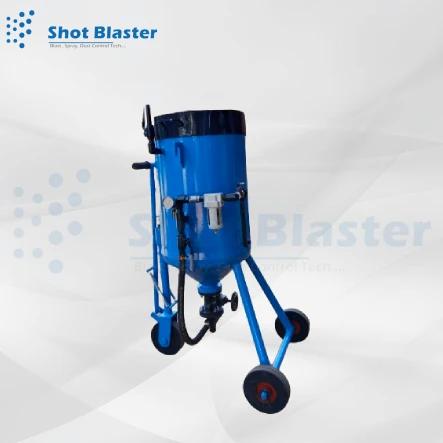

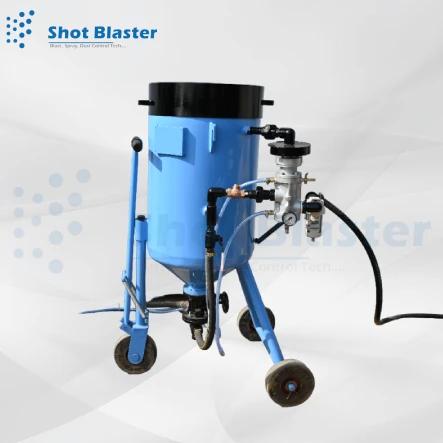

Portable Grit Blasting Machine P7 300 & 300R
Portable Grit blasting machine P7 300 & 300 R is used for the process of cleaning, smoothing, shaping, and cleaning a surface by forcing solid particles across that surface at high velocity, The industrial grit blaster effect is similar to that of using sandpaper but provides a more even finish with no problems at corners or crannies or cracks. Grit blasting machines can occur naturally, usually as a result of particles blown by wind causing erosion, or artificially, by using compressed air using a grit blasting compressor. Small grit blaster (P7 300 & 300R) without remote control, which means the operator needs to manually switch ON/OFF the machine knob of the blasting Pot.
In the automatic On/Off industrial grit blaster, the dead man handle is used at the operator’s hand, when it needs to be on and off then operators can start and stop this small grit blaster. Pressure pot grit blaster is easy to move from one place to another.
Specifications of Portable Grit Blasting Machine:
| Abrasive Tank Capacity (Metallic) |
300 kg |
| Abrasive Tank Capacity (Sand) |
130 Kg |
| Volume |
85 Ltrs |
| Grit blaster Hose Length |
5 Mtrs |
| Grit blaster Hose I.D. |
19 mm |
| Grit blaster Nozzle Orifice (Tungsten Carbide) |
6 mm |
Overall Dimensions:
| Height |
1291 mm |
| Diameter |
461 mm |
| Weight |
141 Kg |
| Air Filter & Pressure Gauge fitted |
1 No. Each |
| Automatic Exhaust Valve fitted |
1 No. |
| Abrasive Control through Pinch Valve fitted |
1 No. |
| Approx. Cleaning Rate [Only for guidance] |
5-9 Sq. Mtrs./Hr. |
| Compressed air required at 80 psi. |
85 cfm |
| Recommended Abrasive Size |
25 to 80 Mesh. |
Portable Grit Blasting Machine Manufacturer in India
Shot Blaster is a Manufacturer, Supplier & Exporter of Portable Grit Blasting Machines P7 300 & 300 R, Sandblasting Machine, Portable Shot Blasting Machine, Grit Blasting Cabinet, Portable Grit Blasting Machine, Sand Blasting Hopper, etc in India at a low price for sale.
