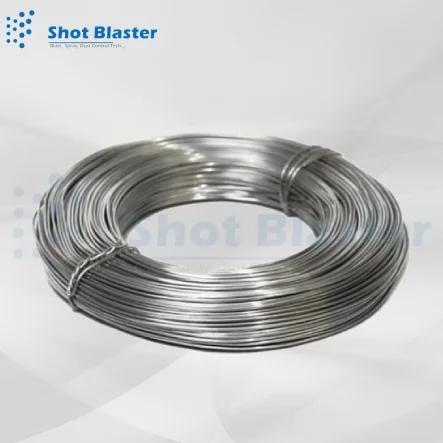

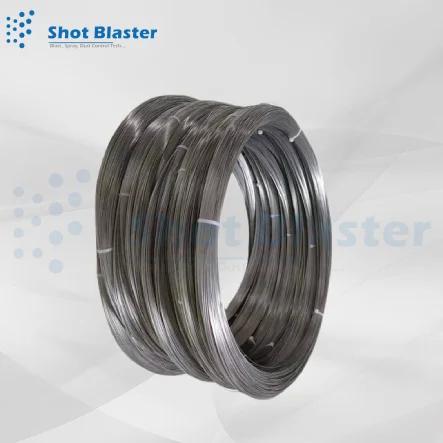

Molybdenum Metalizing Wire for Thermal Spray Gun
Molybdenum metalizing wire widely used material within the thermal spray coating trade thanks to its promising wear and scuff resistance properties. Therefore, a coating of molybdenum is fabricated wherever a better hardness and low friction constant area unit required to offset the wear and tear mechanism. Molybdenum wire is employed in several industrial applications, viz.. bearings, seals, and shafts, as an associate degree overlay coating, to prevent surface harm and degradation.
Molybdenum metalizing wire coatings show low friction, glorious slippery, and wear resistance compared to uncoated hardened steel. Thermal spray coating of Mo and its alloy area unit used for several automotive elements thanks to their glorious tribological properties. Metalizing Wire deposited by the flame spray gun, and arc spray gun technique exploitation Mo wire. The flame spray is a widely used coating deposition technique within the broad category of thermal spraying, within which Mo wire gets liquified through a high-temperature flame and compressed gas breaks the liquified wire into many tiny droplets, leading to a formation that builds up a coating.
The sole drawback with this method is to own a high degree of reaction. This reaction degrades the performance of Mo coating and leading to coatings comparatively have a brief life. The plasma spray gun is commonly wont to deposit molybdenum coatings. However, some recent studies show that plasma sprayed molybdenum coatings area unit comparatively soft as their microhardness falls within the vary of 300-500 HV, having a body of over five-hitter and low wear resistance.
Molybdenum Metalizing Wire Physical Properties
|
Properties
|
Metric
|
Imperial
|
|
Density
|
10.3 g/cubic cm.
|
0.369 lb/cubic in.
|
|
Melting Point
|
2625 C
|
4760 F
|
Molybdenum Metalizing Wire Mechanical Properties
|
Properties
|
Metric
|
Imperial
|
|
Tensile Strength(annealed)
|
324 MPa
|
47000 psi
|
|
Shear Strength(Torsional Strain Rate 0.25/s)
|
500 MPa
|
72500 psi
|
|
Compressive Yield Strength(0.01% Yield)
|
400 MPa
|
58000 psi
|
|
Modulus Of Elasticity
|
330 MPa
|
47900 psi
|
|
Modulus Of Elasticity At Elevated Temperature(@2000 C /3630 F)
|
160 MPa
|
23200 psi
|
|
Thermal Coefficient Of Expansion
|
5x 10-6 cm/cm@ 25 C
|
|
Electrical Conductivity
|
34 % I.A.C.S.
|
|
Thermal Conductivity
|
1.38 W/cm/K @ 298.2K
|
|
Electrical Resistivity
|
5.2 micron-cm
|
Molybdenum Metalizing Wire Manufacturer, Price in India
Sand blast is a leading manufacturing group of molybdenum metalizing wire and provides the best quality at a low price in India. We also manufacture and export sand blasting machine, grit blasting machine, sand blasting hopper, shot blasting machine, thermal spray gun, flame spray gun, metalizing gun, arc spray gun, zinc wire, aluminium metalizing wire, and abrasive like glass beads, copper slag, steel shots, steel grit, etc at a low cost for sale.
